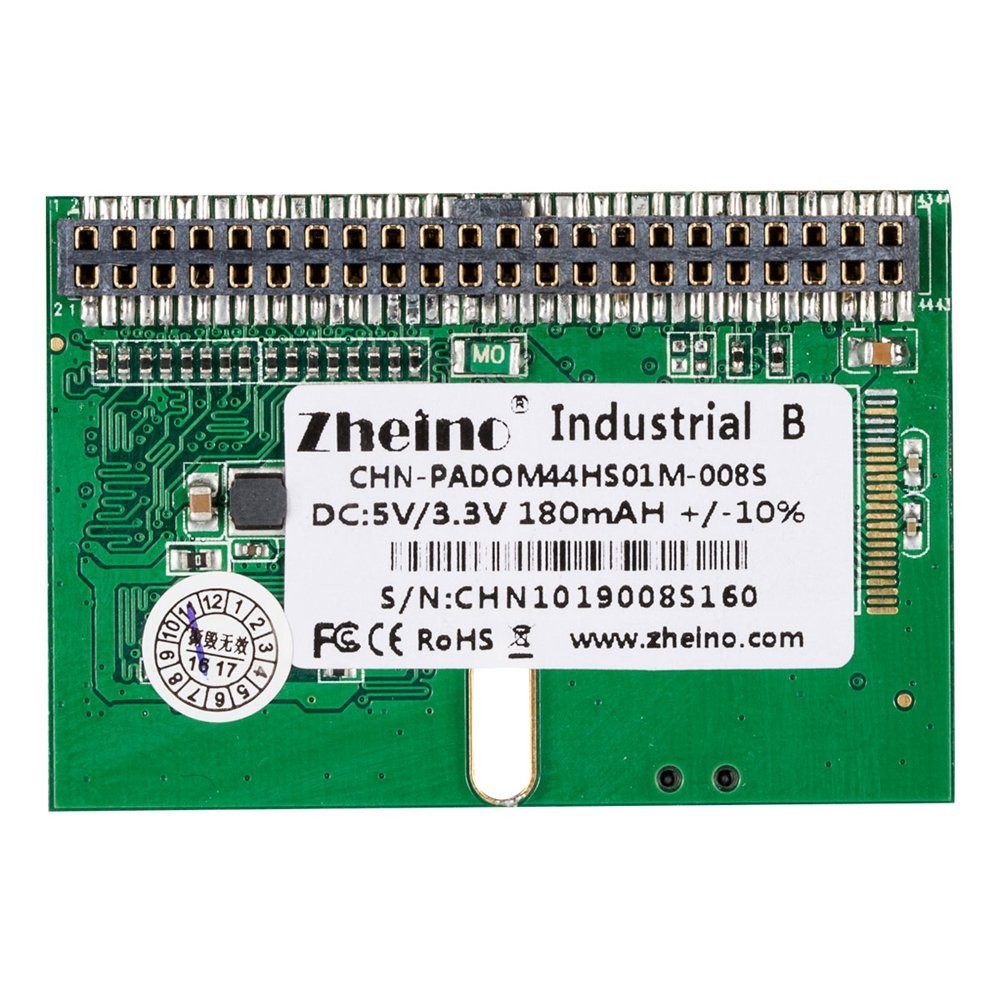

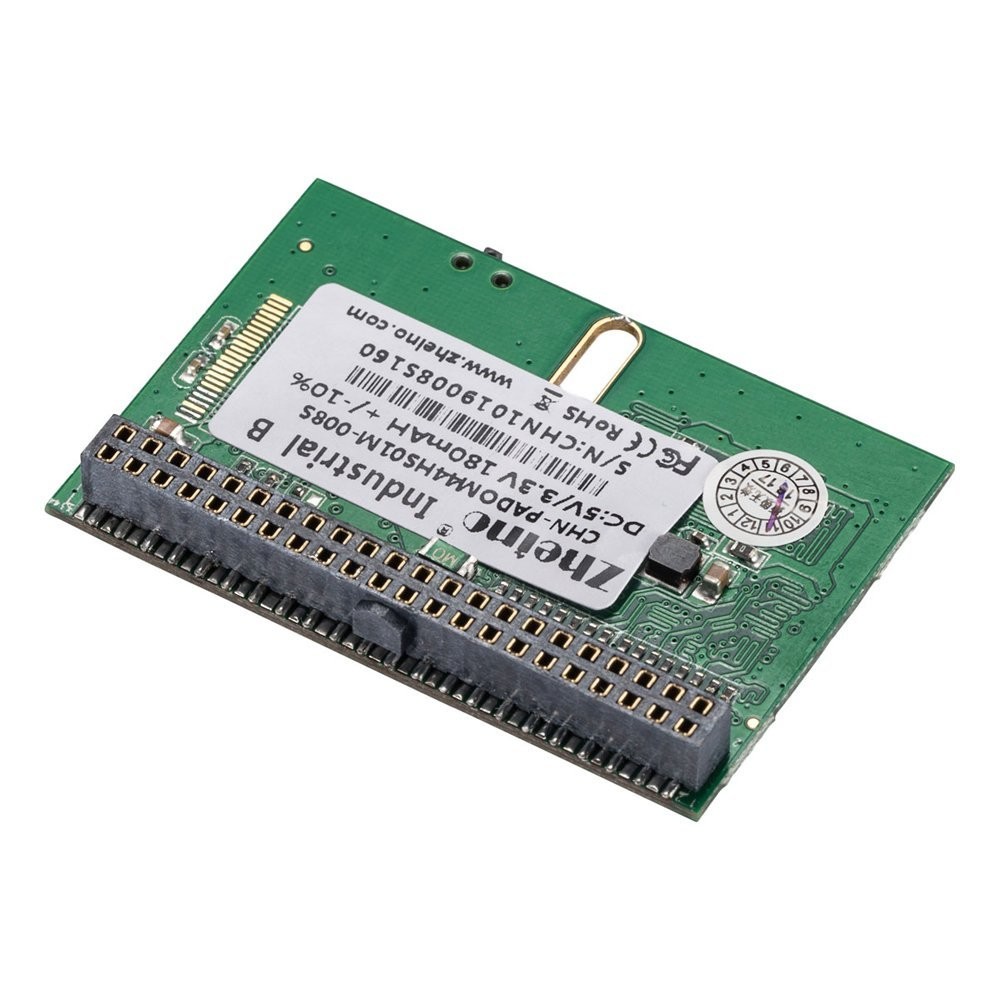

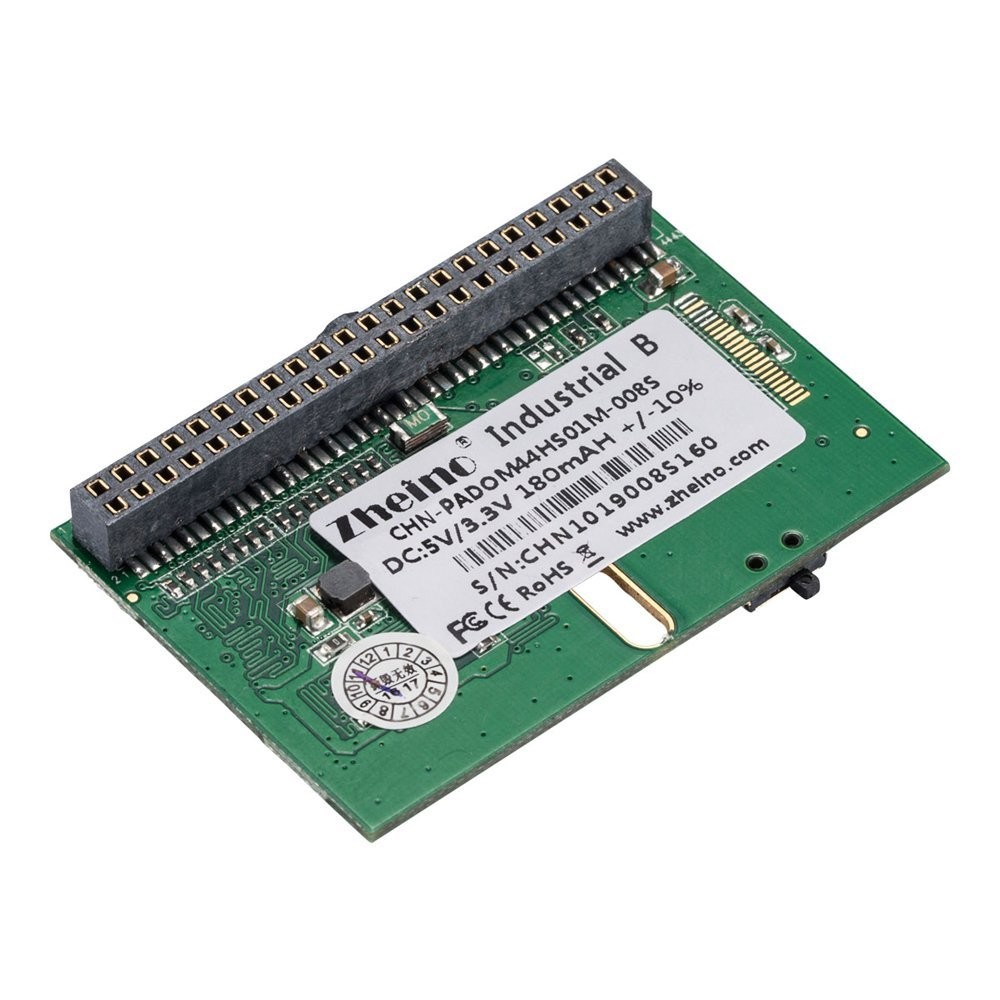

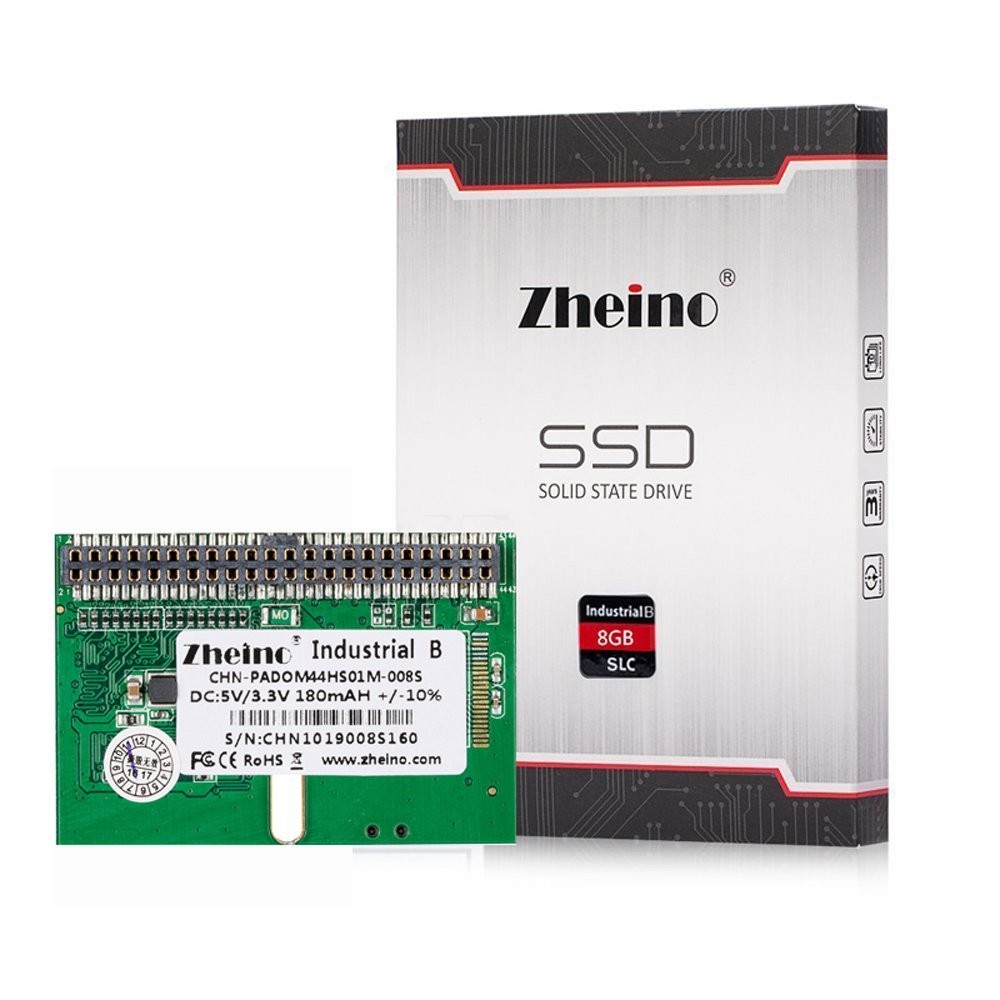

44 Pin Disk On Module IDE SSD Zheino Hard Disk Horizontal Socket For Industrial

Model CHN-PADOM44HS01M-032 General Horizontal Form Factor Socket MLC
Interface pata / ide
Performance Capacity 32 GB
Read sustained 110MB / S
Write sustained 40MB / S
Random IOPS
Random 4 KB Read IOPS 3000
Random 4 KB Write IOPS 400
Average Access 0.4 ms of time
Flash NAND Flash Storage Media NAND Flash
0.5W Idle
2.0W Active
2 year warranty
Available Unit Available NO EOL

Disk On Module, is a high-performance, embedded flash drive designed to replace the traditional IDE mechanical hard drives. It is mainly used in some old motherboards, to enhance the performance of the equipment. It is characterized by the relatively small size, safe and reliable. DOM has a small control chip firmware, transfer data by standard interface of IDE, SATA, USB, no need additional host software.
DOM work at the voltage of 5V, it provided the scalability new features, such as more cost-effective designs, better performance, improved reliability, making it ideal for the field of embedded memory. PATA DOM supports the standard ATA / IDE, up to PIO Mode-4, Multiword DMA Mode 2 and Ultra DMA Mode-6, compatible with all the major operating systems on the market, such as the Microsoft Windows series, Mac OS, and Unix versions.
