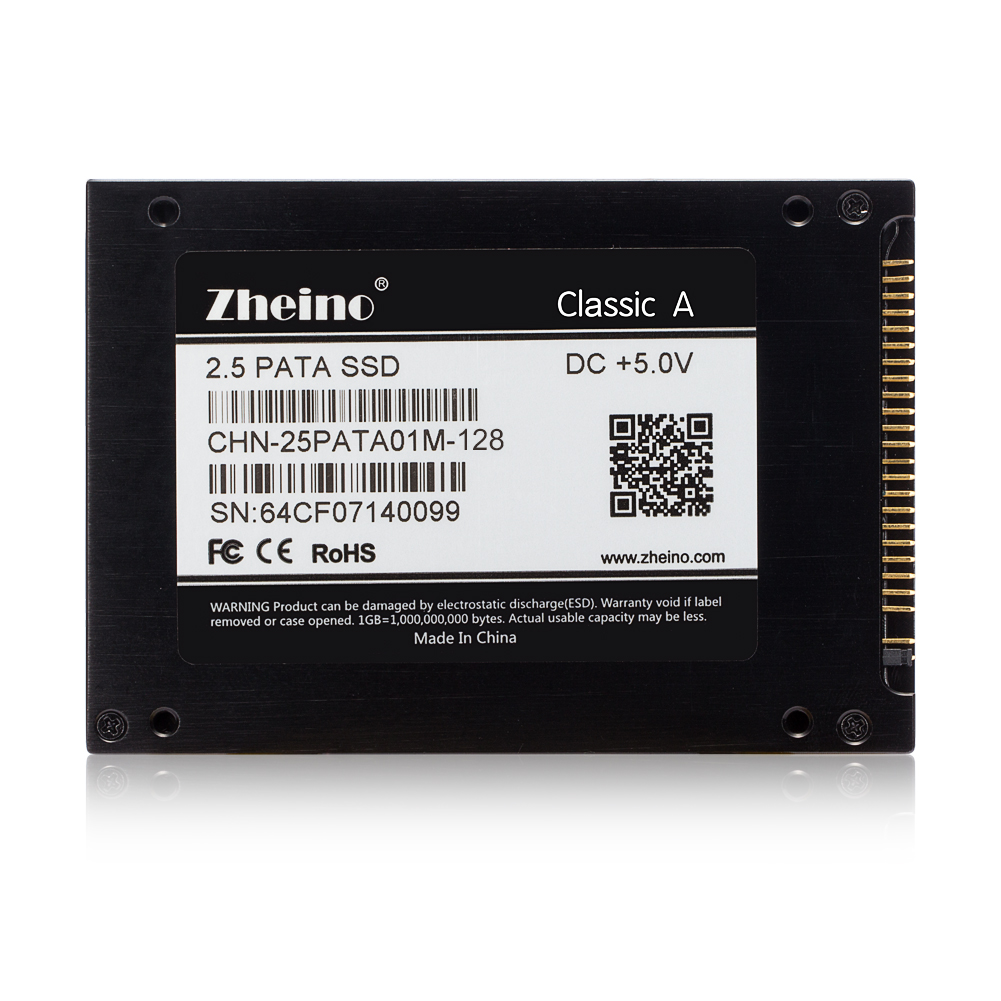

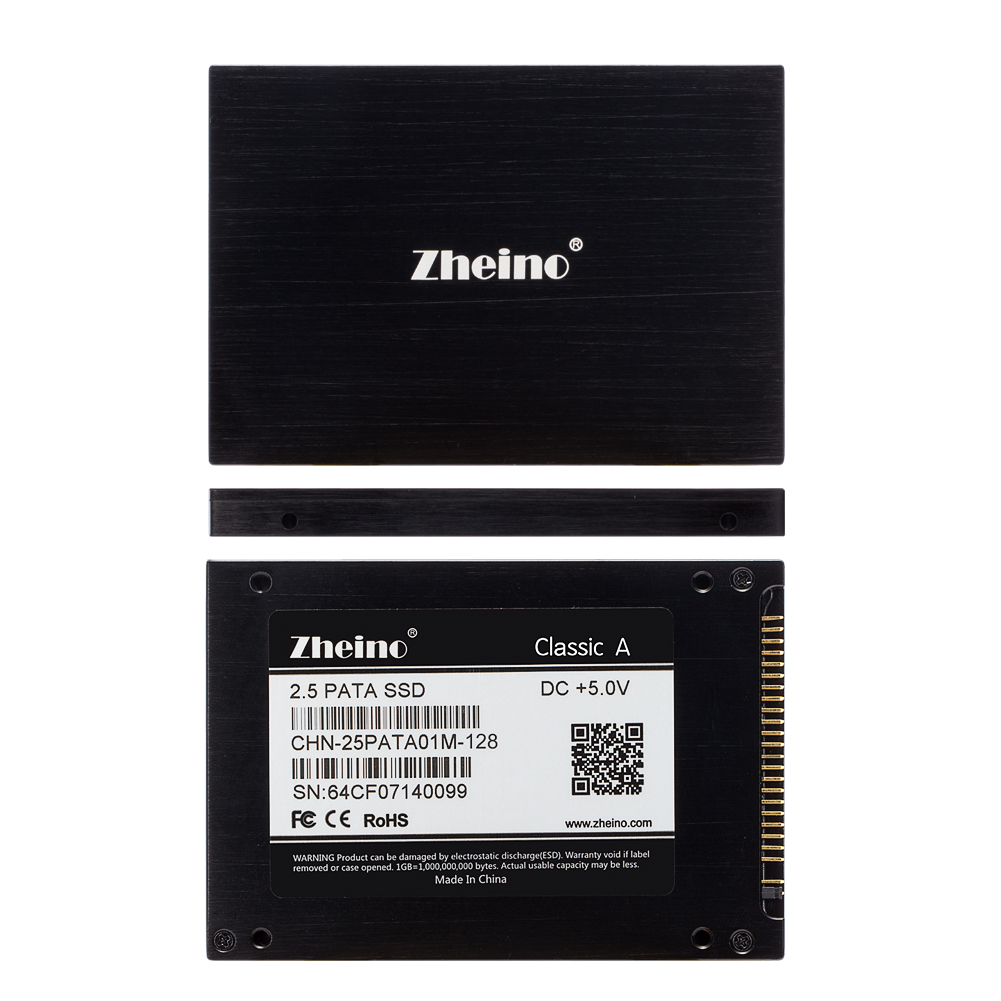

2.5inch PATA IDE 44Pin 128GB SSD

Place of Origin: China
Brand Name: Zheino
Certification: CE RoHS FCC
Model Number: CHN-25PATA01M-128
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 155*110*16 mm
Delivery Time: 5-8 work days
Payment Terms


INQUIRY

Description

Controller: MLC Type: Internal
Style: SSD Interface Type: PATA,IDE
Package: Yes Application: Laptop
Read/Write Speed: 116/80MB/s Size: 2.5"


128gb IDE SSD PATA SSD MLC 2.5 Inch IDE Pata SSD Disk Drive 44pins 128gb SSD Solid State Drive For Laptop 9.5mm

  • Capacity: 128GB ,Interface: 2.5 Inch PATA/IDE 44Pins
  • Read/write speed : 116MB/s, 80MB/s
  • Flash Memory : MLC
  • Dimension: 3.94in X 2.76in X 0.37in / 100mm X 70mm X 9.5mm
  • Warranty:3 Years

Specification:
Model number:CHN-25PATA01M-128
Capacity: 128GB
Interface:2.5 inch PATA/IDE 44Pins
Shell Made Of Aluminium Alloy
Flash Memory : MLC (Not TLC or 3D NAND Flash)
Controller: SMI2236
Dimension: 3.93in X 2.76in X 0.37in / 100mm X 70mm X 9.5mm
Read speed : 116MB/s
Write speed :80MB/s
Operating Temp:32℉~158℉/ 0℃~70℃
Warranty:3 Years

Endurance & ECC:
Write endurance: >8 years @ 100GB write/ day
Read endurance: unlimited
MTBF: 1,000,000 Hours
ECC (Error Correction Code): Supports BCH 8/16/24/40 bits ECC

Warm tips
1. It will be damage by misusing, So keep it away from water, dirt, and high temperature.
2. Because there is a different storage-algorithm between manufacture and windows system/other prevailing computer’s system, the actual capacity will be slightly smaller than nominal capacity.
Storage device conversion formula: nominal capacity X93% = actual capacity.
