Type:
|
Internal
|
Style:
|
SSD
|
|
SSD Capacity:
|
64GB
|
Interface Type:
|
MSATA(SATA 3Gbps)
|
|
Read Speed:
|
420Mb/s
|
Write Speed:
|
80Mb/s
|
|
Dimensions:
|
50 X 30 X 3.6mm
|
Warranty:
|
3years
|

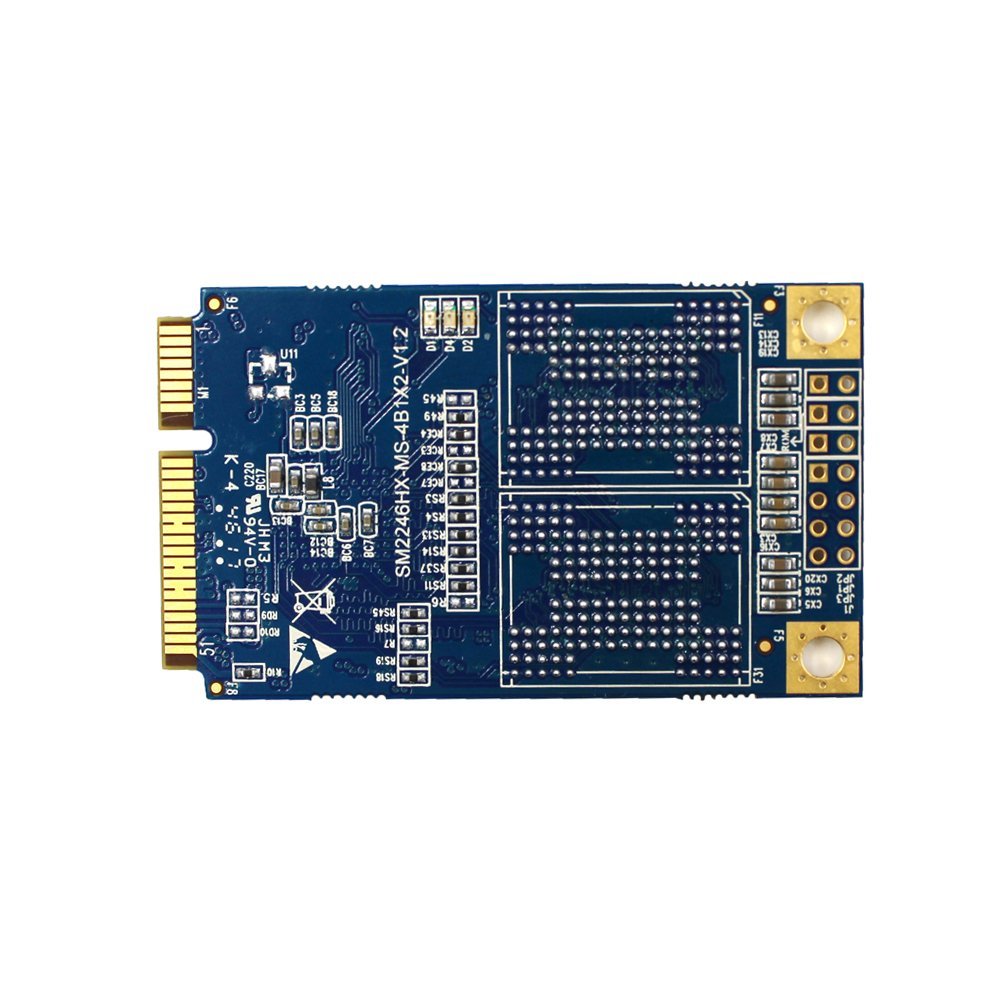

64GB RoHS Msata SSD Drive M1, HDD SSD mSATA 3Gbps 3.3V Input
Our motto is that quality is our life. For this, we firmly promise our customers with competitive price, top quality, timely delivery and the good after-sales service. Therefore, we have had many valuable customers throughout Europe, America, Asia, Australia and the Middle East etc.We welcome new and old customers worldwide to contact us for more business cooperation and mutual success.
MSATA SSD
|
model
|
|
M1 32G 64G 128G 256G
|
|
Gerneral
|
Interface
|
SATAIII/6.0 Gbps
|
|
.
|
Dimensions
|
50 x 30 x 3.6mm
|
|
.
|
Capacity
|
32GB/64GB/128GB/256GB
|
|
Storage Media
|
.
|
2D MLC Flash
|
|
Performance
|
Sustained Read
|
up to 258MB/s,420MB/s,510MB/s,520MB/s
|
|
.
|
Sustained Write
|
up to 46MB/s,80MB/s,150MB/s,300MB/s
|
|
.
|
4K random I/O read
|
5458,5446,7774,8167
|
|
.
|
4K random I/O write
|
2155,3655,6971,7672
|
|
Power Consumption
|
input Voltage
|
3.3V
|
|
.
|
Idle
|
0.23w
|
|
.
|
Active
|
1.25w
|
|
Reliability& Endurance
|
Wear-Leveling
|
Dynamic and static wear-leveling
|
|
.
|
Data Retention
|
10years at 26oC
|
|
.
|
MTBF
|
>3,000,000hours
|
|
.
|
Bad Block Management
|
Auto Bad Block Management in system
|
|
.
|
ECC
|
Supports BCH ECC 66bits in 1K bytes
|
|
Warranty
|
Time limit
|
3years
|
|
Environment
|
Operating Temperature
|
0 - +70℃
|
|
.
|
Storage Temperature
|
-40 - +85℃
|
|
.
|
Shock
|
1000G
|
|
.
|
Vibration
|
15G
|
|
.
|
Ambient Humidity
|
5%-95%
|
|
Available
|
.
|
YES,No EOL
|
|
Testing OS
|
.
|
Windows7 64bit
|
|
Testing Platform
|
.
|
Mainboard:ASUS B75M-A;CPU:G1620 2.7Ghz;DRAM:DDR3 2GB
|
|
Testing Software
|
.
|
CrystalDiskMark 3.01 x64
|
Advantages of Solid State Drive:
1. Quick response and high read/write speed
2. Silent mode
3. Low power consumption and low heat.
4. None mechanical breakdown
5. Can work under wider range tempreture, 0~70℃
6. Lighter, smaller and more portable.
7. Shockproof and drop resistance.
