MLC Nand Flash Q1 mSATA SSD 60GB , FCC Hard Disk Drive For Laptop 1.25W Active

Place of Origin: China
Brand Name: Zheino
Certification: CE RoHS FCC
Model Number: CHN-mSATA01M-060
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 155*110*16 mm
Delivery Time: 5-8 work days
Payment Terms:


INQUIRY

Description

Item Condition: New Interface Type: MSATA
Controller: SMI2246XT Products Status: Stock
HDD Capacity: Msata Ssd 60GB Suitable: For Notebook/laptop/ultrabook
Warranty Time: 3years NAND Type: 2D MLC


Model Q1 mSATA 60GB
General Form factor 30*50mm
Interface MSATA
Performance Capacity 60GB
Sustained Read 420MB/s
Sustained Write 80MB/s
Random IOPS
4KB Random Read IOPS 5546
4KB Random Write IOPS 3655
Average Access time 0.2ms
Storage Media NAND Flash 2D MLC
Power Consumption input Voltage 3.3V+/-5%
Idle 0.23W
Active 1.25W
Reliability& Endurance Write endurance 8years ,100GBytes write and erase per day at 32GB
Read endurance unlimited
Wear-Leveling Algorithm Dynamic and static wear-leveling
Data Retention 10years at 25degree
MTBF 1,000,000hours
ECC support NCQ,TRIM 16bits or 24bits in 1024 bytes
Bad Block Management Auto Bad Block Management in system
Environment Operating Temperature 0~70 degree
Non-operating Temperature -40~85 degree
Shock
Vibration
Ambient Humidity 5-95%
Warranty 2years
Available unit Available NO EOL
Application for tablet pc
brand kingspec
Physical Dimensions & Weight Height(mm) 3.5+/_0.25
Width(mm) 30+/_0.25
Length(mm) 23.5+/_0.25
Weight(g) 3.5+/_0.5
The read and write speed is limited to this test platform.

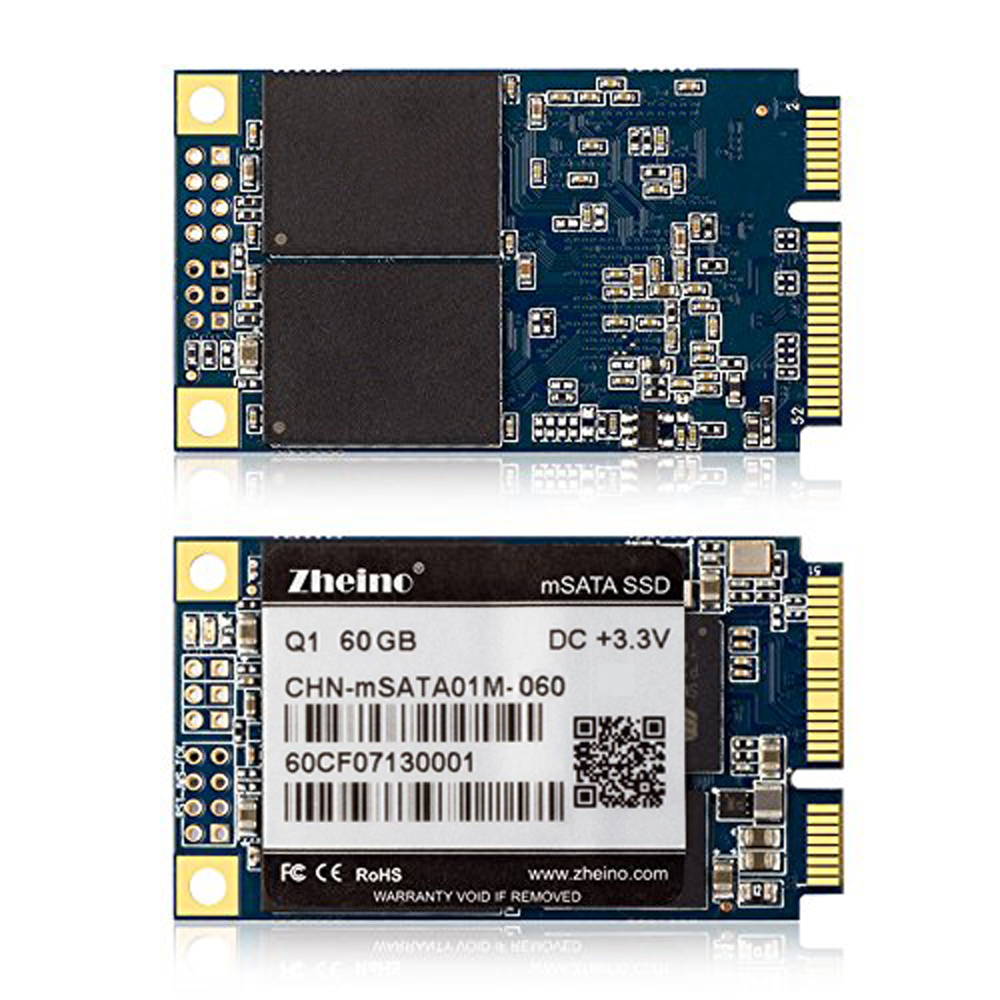

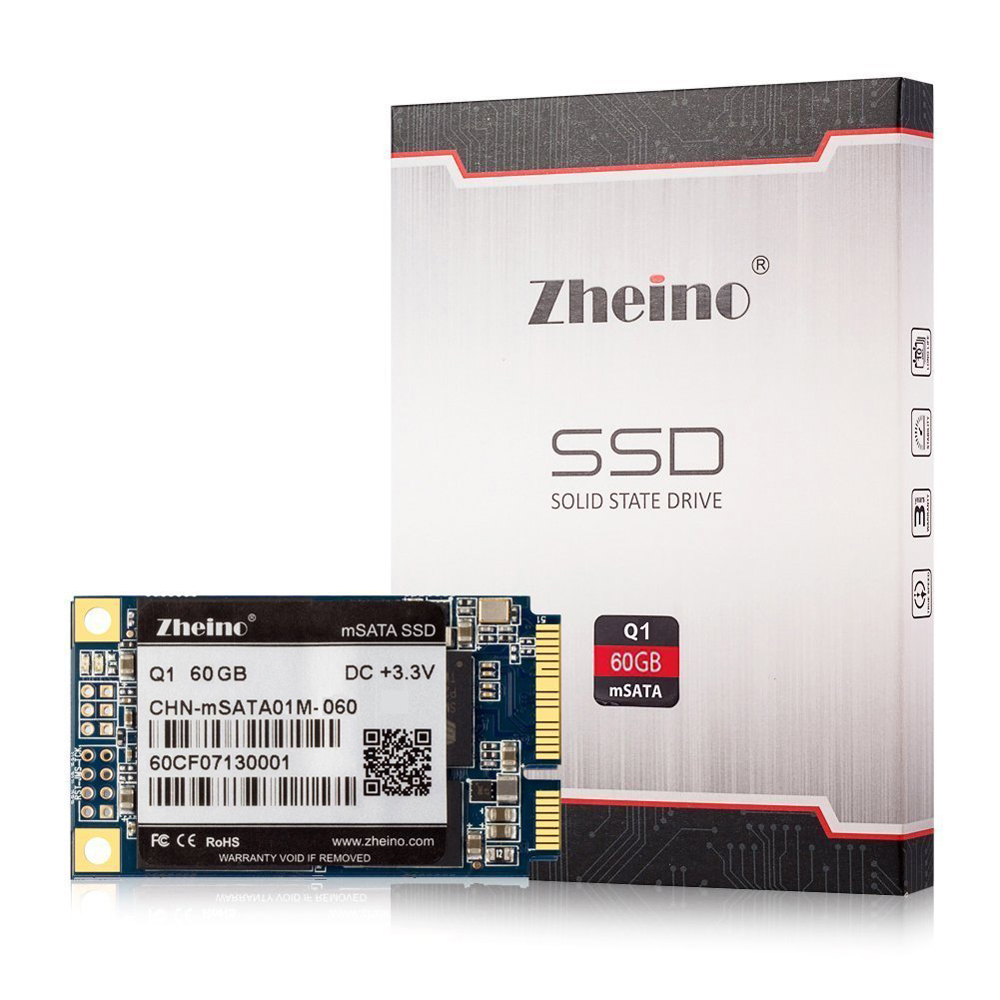

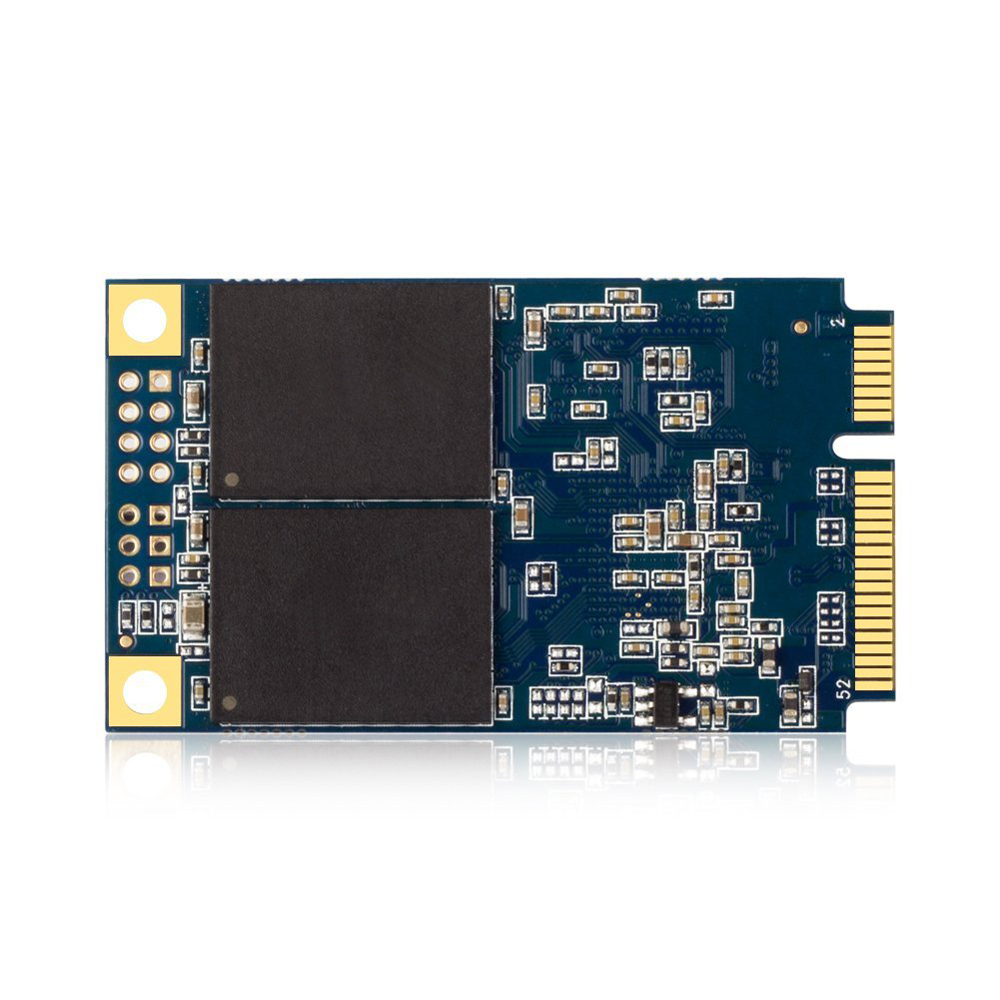

Description of Zheino Q1 SSD

Fantastic transfer speeds with the SATA III 6Gbps interface to open a application faster.

It is one of the lightest and thinnest SSD with dimension: 30*51*3.5mm/1.18 x 2.00 x 0.14 inches to fit in a wider array of systems.

Work Platform: POS machine, game machine, Advertise machine, Thin client, laptop, notebook and other devices with mSATA interface.
Not suitable for Mini9(Inspiron Mini910) and vostro A90
Not suitable for ASUS Eee PC S101/Eee PC 900/Eee PC 900A/Eee PC 901/Eee PC 1000/Eee PC T91 MT/View PAD

It will be damaged by misusing, So keep it away from water, dirt, and high temperature.
